myBOX A standalone SCADA server and router. Access your system in a browser or on a connected panel.myPANEL A touchscreen and HMI system in one. Connects directly to a PLC and can run without myBOX.

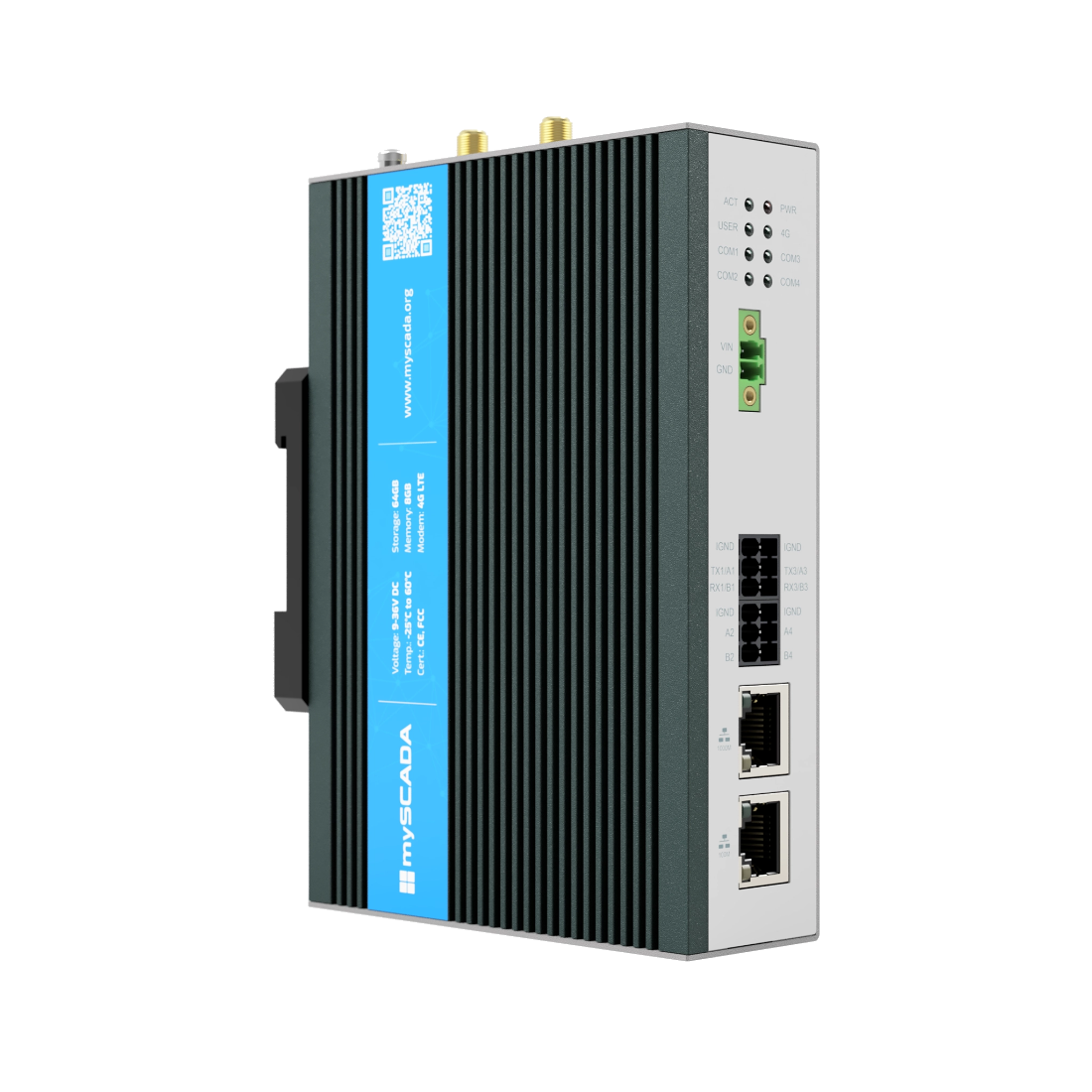

mySCADA myBOX
SCADA server & router in one device

myBOX

A complete HMI/SCADA system with no dedicated computer needed

myBOX is a SCADA server with myPRO preinstalled. It connects to your PLCs so you can monitor the system and adjust settings in a browser on a computer, phone or tablet. myBOX can serve multiple panels, while its integrated router handles network connections and remote access via VPN.

myPRO preinstalledBrowser accessRemote access via VPN4G/LTE backup connectionSeparate networks and firewall
myBOX details and technical specifications at mySCADA

Systems running on myBOX: Nursing home · Colour-controlled outdoor lighting and snow melting · Wastewater pumping station · Swimming pool · School · Exhaust extraction in a vehicle hall

How myBOX connects

BROWSER · PHONE · TABLETBrowser accessInternetVPNmyBOXSCADA SERVER + ROUTERLAN 2OPERATOR NETWORKPCs / workstationsLAN 1CONTROL NETWORKPLCS AND DEVICESMonitoring and settingsMeasurements and commands
Browser accessComputer · phone · tablet
VPN
myBOXSCADA server and router
LAN 2Operator networkPCs and workstationsMonitoring and settings
LAN 1Control networkPLCs and devicesMeasurements and commands

myBOX reads measurements and status from the PLC. The HMI lets you monitor the equipment and adjust settings.

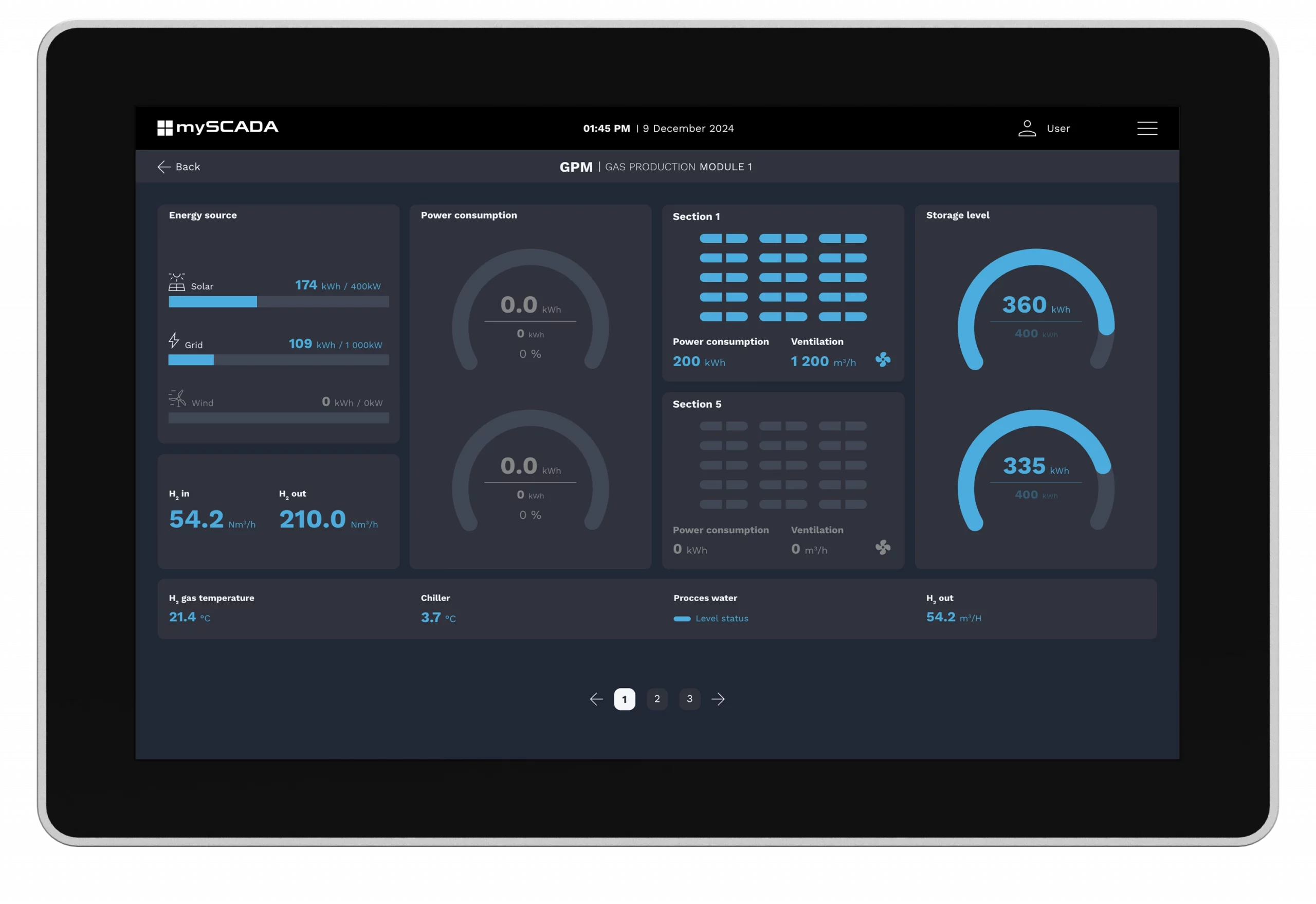

mySCADA myPANEL
Touchscreen for monitoring and control

myPANEL

The HMI system and control panel in a single display

myPANEL is a touchscreen with myPRO preinstalled. It can connect directly to PLCs and run the HMI/SCADA system without a myBOX. It can also connect to a shared myBOX or myPRO server. You can also open the HMI in a browser on a computer or phone on the same network. Access from outside the local network requires a secure remote connection.

7″
10″
11″
13″
15″
Resolution from 1024 × 600 to 1920 × 1080, depending on display sizemyPRO preinstalledDirect PLC connection or myBOXAlarms and trendsBrowser access
myPANEL details and technical specifications at mySCADA

Software

myPRO

HMI/SCADA software for monitoring equipment, adjusting settings and viewing alarms and trends. myPRO comes preinstalled on both myBOX and myPANEL.

myDESIGNER

Design software for creating HMI screens and configuring alarms and data logging. The basic edition is free.

myREPORTS

Reporting based on data from your control system.

More about mySCADA: www.myscada.org

Which equipment suits your project?

We help you select, install and use mySCADA equipment.

Call +354 840 8168andor@andor.is
